Containerized Reverse Osmosis (RO) Plants

Get in Touch Now

+971-524470640

Phone Number

+971 52 447 0640

Contact us today for the Free Quote

Description

What the system is and what problem it solves?

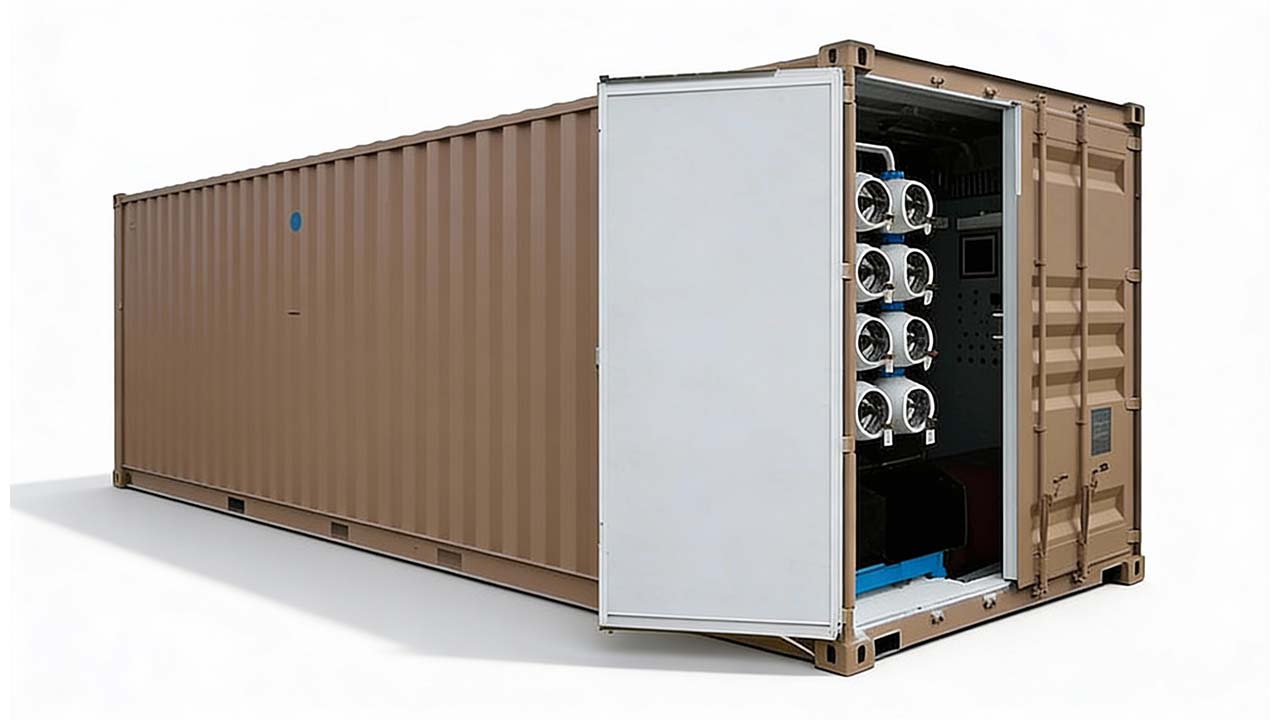

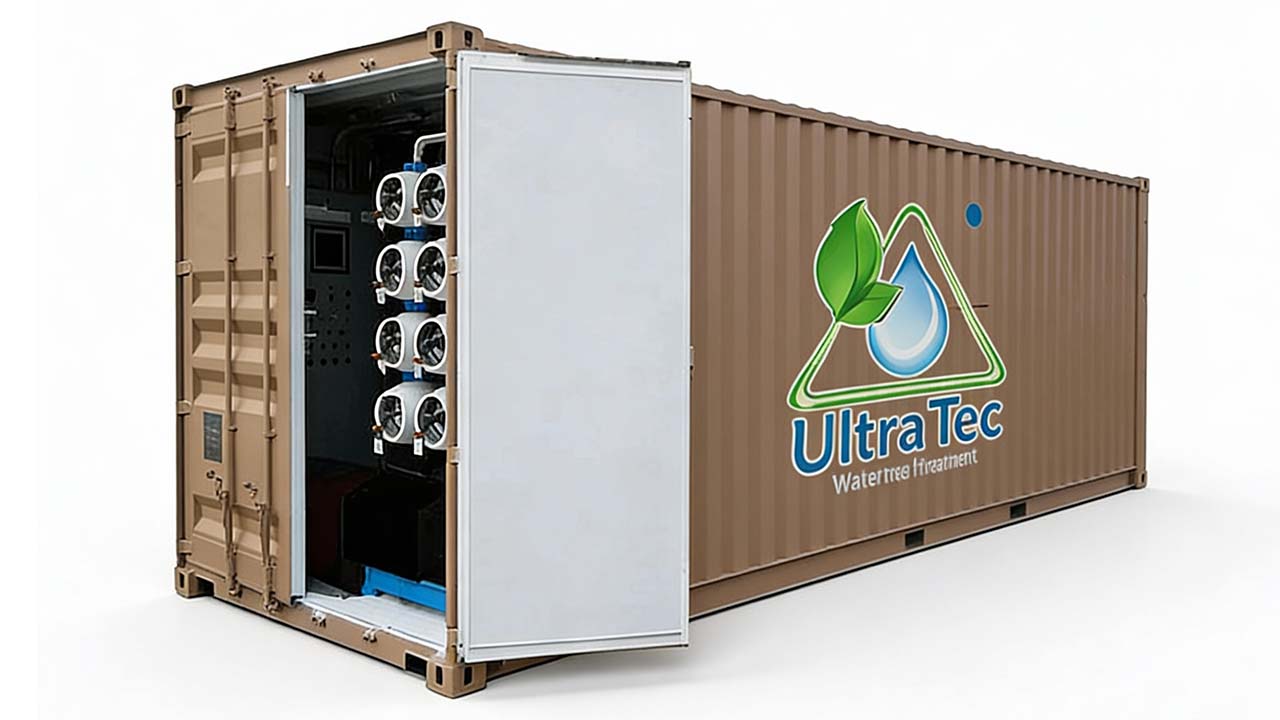

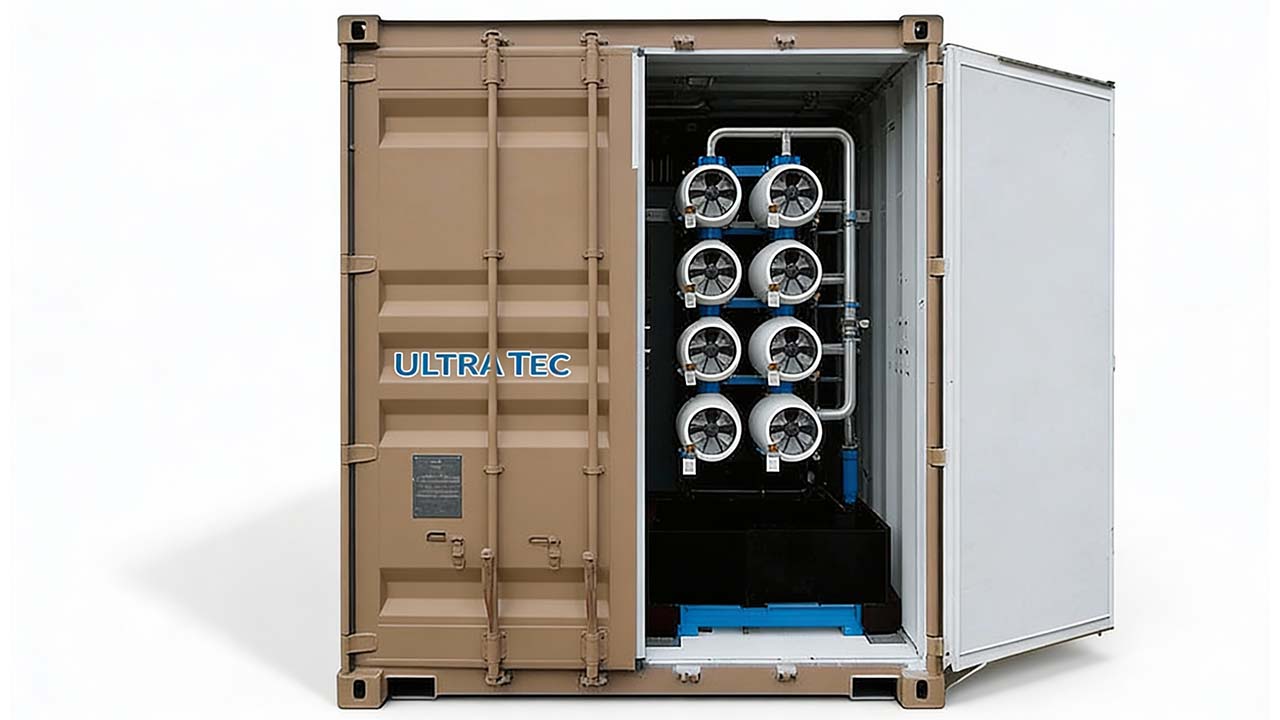

Ultratec Containerized RO Plants are fully integrated water treatment systems housed within standard ISO shipping containers. These systems are engineered, assembled, and factory-tested prior to delivery, enabling rapid deployment at site with minimal civil and installation requirements.

Containerized RO plants are intended for applications where permanent plant buildings are not feasible, where mobility is required, or where rapid commissioning is critical.

Process Design & Operating Philosophy

The core treatment process is reverse osmosis, where pressurized feed water is passed through semi-permeable membranes to separate purified permeate from concentrated reject.

The operating philosophy emphasizes:

Pre-engineered, plug-and-play deployment
Stable hydraulic and membrane loading conditions
Automated operation with safety interlocks
Continuous or semi-continuous production depending on application

For seawater applications, energy recovery devices may be incorporated to optimize power consumption.

Design Basis & Engineering Assumptions

Each containerized RO plant is designed based on project-specific inputs, including:

Feed water source (seawater, brackish water, well water, surface water)
Feed water TDS and complete water analysis
Required treated water capacity
Target permeate quality
Recovery limits based on scaling and fouling potential
Ambient temperature and site conditions

Final design parameters are confirmed following engineering review.

System Configuration

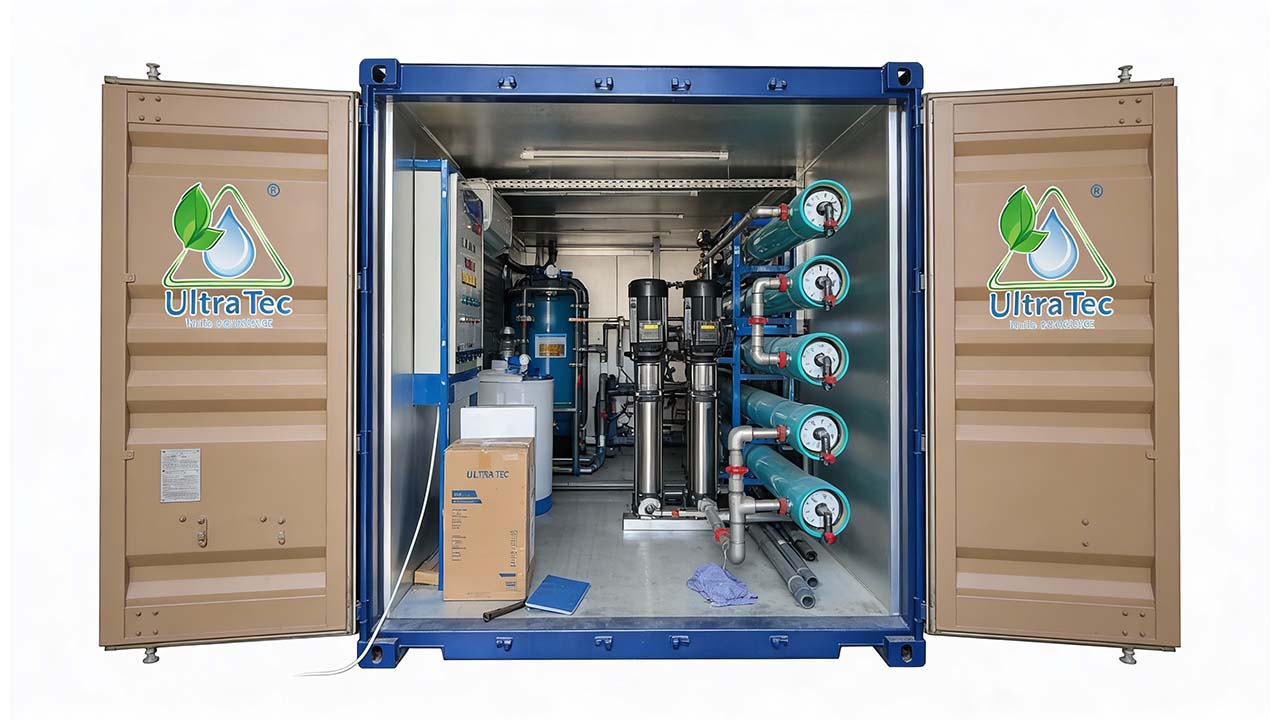

A typical Ultratec containerized RO system includes:

RO membrane skids with FRP pressure vessels
High-pressure and booster pumps
Pretreatment equipment (as required)
Chemical dosing systems (antiscalant, pH adjustment, dechlorination)
Instrumentation for flow, pressure, conductivity, and temperature
PLC-based control panel installed within the container
Internal piping, cabling, lighting, and drainage

The system layout is developed using 3D design to ensure accessibility and safe operation.

Performance Parameters

Performance characteristics are project-specific and typically include:

Capacity: As per customer requirement
Recovery rate: Optimized based on feed water quality
Salt rejection: Membrane dependent
Operating pressure: Determined by osmotic pressure and system losses
Energy consumption: Dependent on feed salinity and recovery

Guaranteed values, where applicable, are issued during project execution.

Pretreatment & Integration Requirements

Pretreatment is engineered to protect RO membranes and ensure stable operation. Depending on feed water quality, pretreatment may include:

Media filtration for suspended solids removal
Activated carbon filtration for chlorine and organics
Iron and manganese removal systems
Cartridge filtration
Advanced pretreatment such as UF for challenging waters

Containerized RO plants can be integrated with storage tanks, distribution systems, or downstream polishing units.

Models / Capacity Range

Containerized RO plants are supplied as engineered systems, not fixed catalog products.

Typical configurations include:

Container Size	Typical Capacity Range*
20 ft ISO Container	Small to medium capacities
40 ft ISO Container	Medium to large capacities
Multiple Containers	High-capacity or multi-train systems

Models

Brackish Water RO – Modular Product Range

Model Code	Container Size	Feed Water Type	Nominal Capacity*	RO Configuration
CRO-20-BW	20 ft ISO	Brackish Water	Up to 100 m³/day	Single Pass BWRO
CRO-40-BW	40 ft ISO	Brackish Water	Up to 500 m³/day	Single / Dual Pass
CRO-20-SW	20 ft ISO	Seawater	Up to 50 m³/day	Single Pass SWRO
CRO-40-SW	40 ft ISO	Seawater	Up to 1,000 m³/day	Multi-Pass SWRO
CRO-MULTI	Multiple Containers	BW / SW	>1,000 m³/day	Multi-Train System

* Final capacity depends on feed water quality, recovery rate, and design conditions.

Features

Standard Features:

ISO standard containerized housing (20 or 40 ft)
Factory-assembled and tested system
Internal piping, cabling, and instrumentation
Plug-and-play site installation
Compact footprint with minimal civil works
Designed for continuous industrial operation

Available Options:

Energy recovery devices for SWRO systems
Container insulation and HVAC systems
Remote monitoring and SCADA integration
Separate chemical room within container
Skid redundancy for critical applications
Multi-container modular expansion

Applications

Ultratec containerized RO plants are technically suitable for:

Seawater desalination
Brackish and well water treatment
Construction and infrastructure projects
Remote industrial facilities
Emergency and temporary water supply
Municipal and utility applications
Irrigation and process water production

Each application is evaluated to confirm technical suitability.
