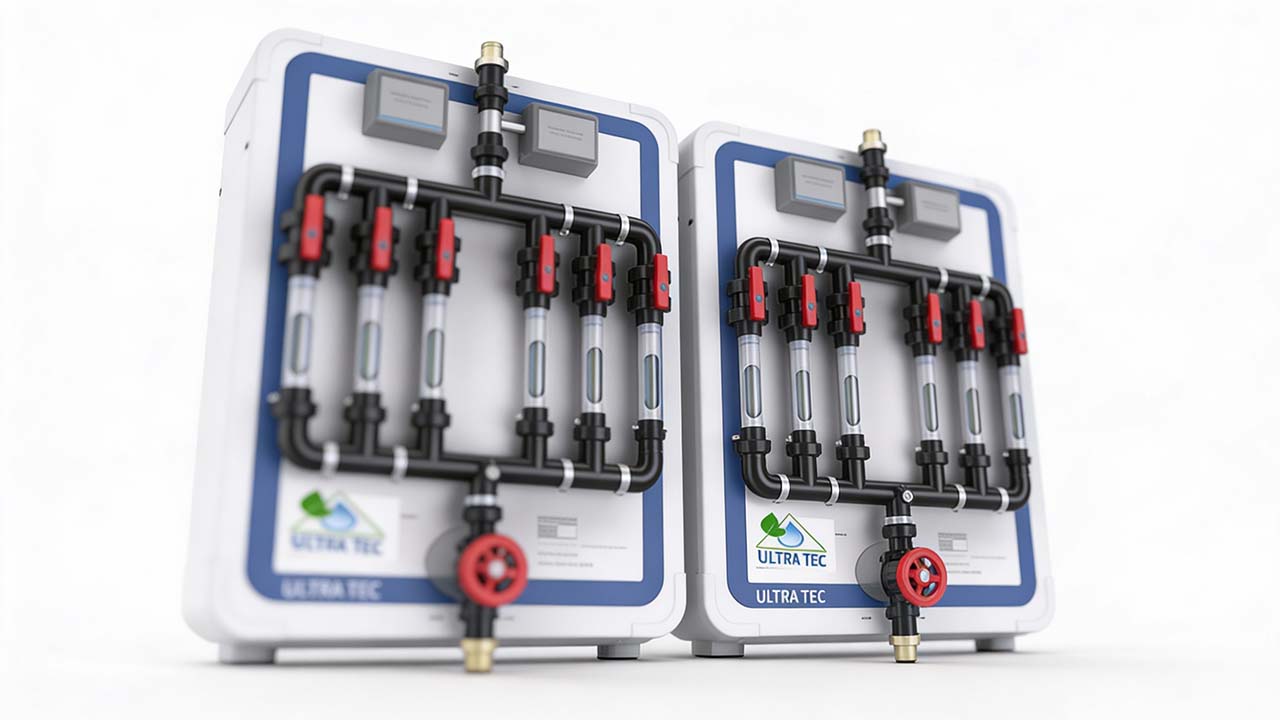

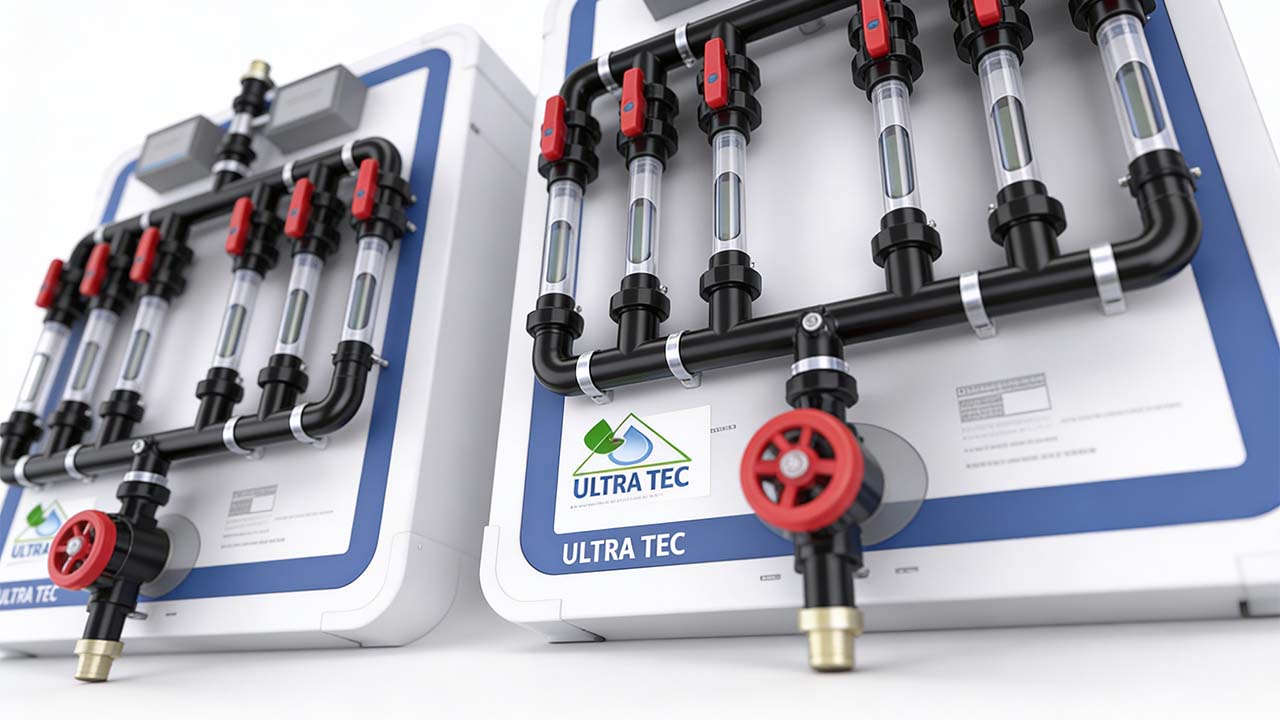

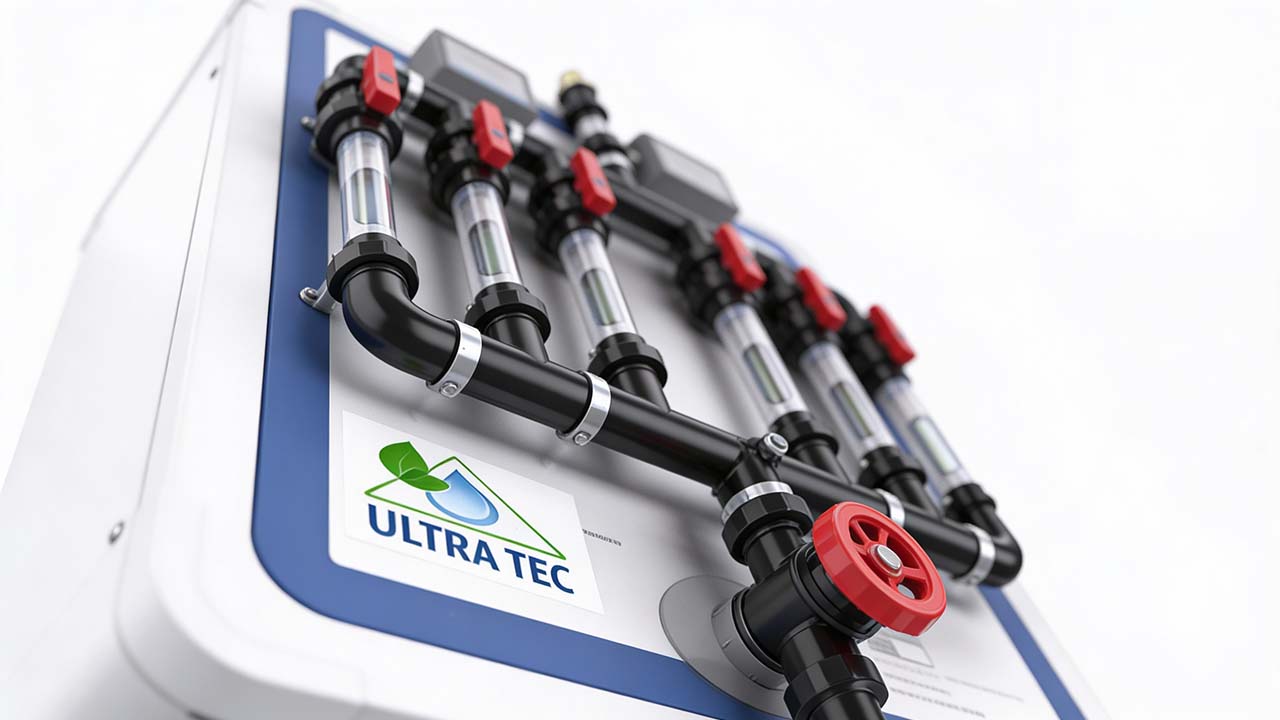

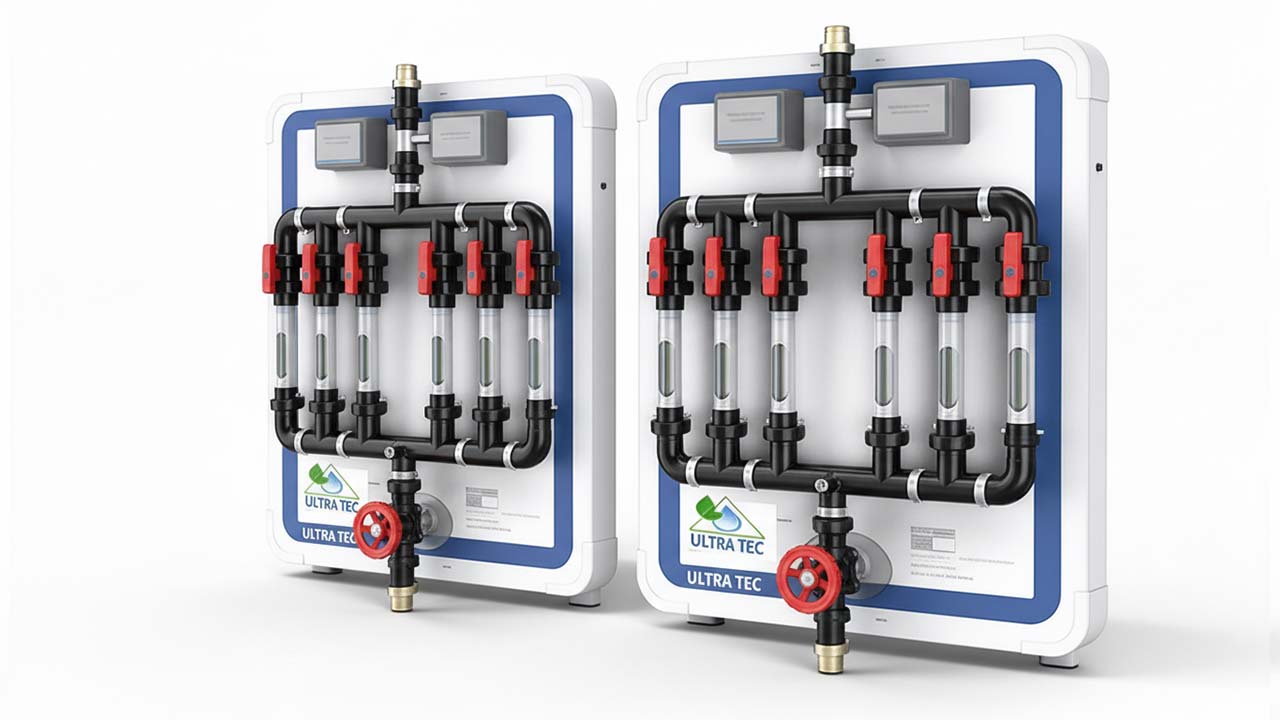

Copper Silver Ionization Systems

Get in Touch Now

+971-524470640

Phone Number

+971 52 447 0640

Contact us today for the Free Quote

Description

The Ultratec Water Treatment Company Uae Copper Silver Ionization Systems is an advanced water disinfection technology that uses copper and silver ions to purify water. It is effective against a wide range of bacteria, viruses, protozoa, and algae, making it suitable for industrial, commercial, and residential applications. The ions are generated by an electrical current passing through a solution of copper and silver. These ions attach to microorganisms’ surfaces, disrupting their cell membranes and preventing replication. This system is safe for humans, environmentally friendly, and operates without the use of harmful chemicals.

Process Design & Operating Philosophy

Copper and silver ions are generated through an electrical current applied to a solution containing copper and silver electrodes. The ions are then introduced into the water stream, where:

Copper ions disrupt bacterial cell membranes and inhibit essential metabolic processes.
Silver ions penetrate microorganism cell walls, damaging DNA and preventing replication.

The system maintains controlled ion dosing to ensure effective disinfection while complying with water quality standards. Continuous monitoring of ion levels ensures consistent antimicrobial performance. The system is designed for low maintenance and can operate reliably in both small-scale and large-scale applications.

Design Basis & Engineering Assumptions

Parameter	Design Basis
Feedwater TDS	Up to 2000 mg/L
Flow Rate	1 – 100 m³/h (customizable)
Copper Ion Concentration	0.2 – 0.4 ppm
Silver Ion Concentration	0.05 – 0.1 ppm
Operating Temperature	5 – 45°C
pH Range	6 – 9
Power Supply	220–480V / 50–60 Hz
Electrode Life	3 – 5 years
System Type	Continuous disinfection with automatic control

Final parameters are verified based on feedwater analysis and site-specific requirements.

System Configuration

Component	Specification
Copper Electrodes	High-purity copper, low maintenance
Silver Electrodes	High-purity silver, long life
Dosing System	Microprocessor-controlled for precise ion output
Flow Control	Adjustable flow rates for variable water systems
Monitoring	Online copper/silver sensors and display panel
Piping	Stainless steel and UPVC compatible with potable water
Control Panel	NEMA 12 enclosure with digital interface
Skid	Stainless steel welded frame, pre-assembled for plug-and-play installation

Pretreatment & Integration Requirements

To ensure optimal performance:

Pre-filtration to remove suspended solids (>5 μm).
Dechlorination if using chlorinated feedwater (to prevent electrode corrosion).
Control of iron, manganese, and organics in water.
Integration with upstream water treatment units or downstream systems like RO or UV is recommended for enhanced water quality.

Models

Brackish Water RO – Modular Product Range

Model Number	Capacity (m³/day)	Applicable System	Electrode Type	Power Supply	Dimensions (L x W x H, cm)	Approx. Weight (kg)
UT-CS-10K	10	Residential/Commercial	Copper-Silver	220V/50Hz	120 x 60 x 80	80
UT-CS-50K	50	Industrial	Copper-Silver	380V/50Hz	180 x 100 x 150	220
UT-CS-100K	100	Large Industrial	Copper-Silver	380V/50Hz	200 x 120 x 180	350

Note: Models and capacities can be customized based on water flow requirements, system type, and site-specific conditions.

Features

Standard Features:

Continuous water disinfection using copper and silver ions
Broad-spectrum antimicrobial effectiveness against bacteria, viruses, protozoa, and algae
Safe for humans, animals, and the environment
Minimal maintenance requirements
Chlorine-free operation; no harmful byproducts
Microprocessor-controlled dosing for precise ion release
NEMA 12 control enclosure for protection in industrial environments
Remote monitoring capabilities for system performance

Available Options:

Integration with RO or filtration systems
Automated electrode cleaning and maintenance alerts
SCADA integration for centralized monitoring
Customizable flow capacities for industrial-scale applications

Applications

Hospitals and healthcare facilities (drinking, bathing, procedural water)
Commercial buildings (hotels, offices, sports facilities)
Residential complexes and homes
Industrial water systems (cooling towers, process water, boilers)
Modular and remote installations requiring reliable disinfection
