Disc Filter | Cluster Filters | Stainless Steel Filtration

Below are the three filtration components included on this page, rewritten clearly and uniformly.

Aytok Disc Filtration System

The Aytok Disc Filter is designed for reliable removal of suspended particles, protecting downstream equipment such as RO membranes, pumps, and pipelines. Its disc-stack design provides durable and reusable filtration suitable for commercial and industrial applications.

Features

Disc and screen filtration options
Strong, corrosion-resistant housing
Easy to open, clean, and reinstall
Suitable for RO pretreatment and general filtration
Stable performance under varying pressure conditions

Technical Specifications

Body Material: PA 30% GFR
Cartridge Material: PP (disc), PA (screen), AISI 304 cage
Maximum Working Pressure: 8 bar (116 psi)
Maximum Working Temperature: 60°C (140°F)
Filtration Degree: 20 / 50 / 100 / 125 micron
Cartridge Options:
- D: Disc cartridge
- E: Screen cartridge

Ideal Applications

Reverse osmosis pretreatment
Irrigation filtration
Industrial water systems
Commercial building filtration
General particle removal

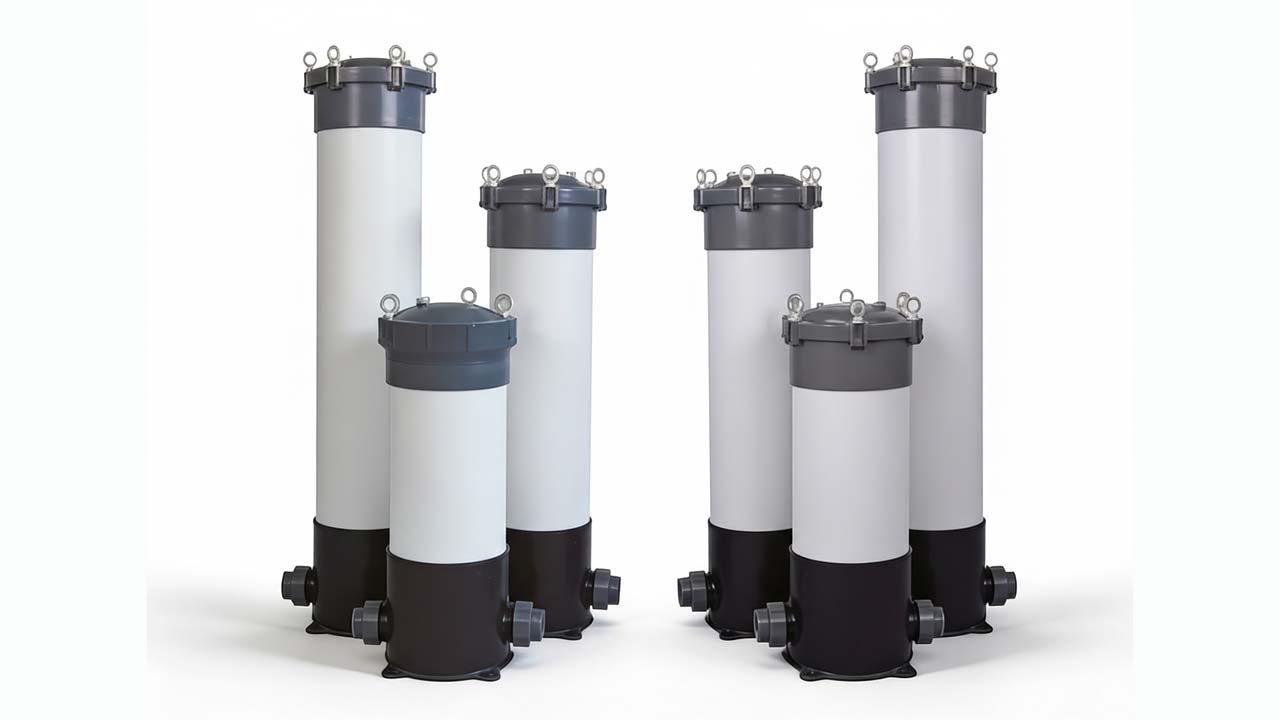

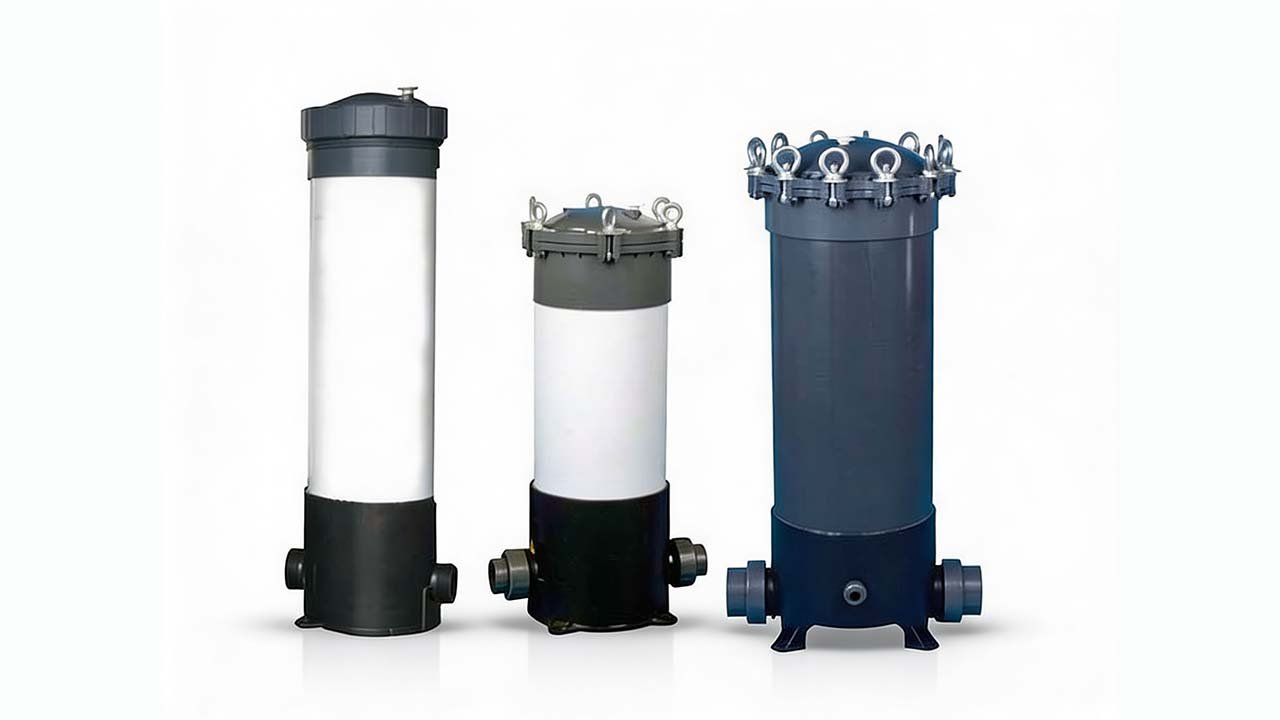

FRP Cluster Filter

The FRP Cluster Filter is designed for high-capacity filtration in compact spaces. Its multi-cartridge layout allows simultaneous replacement of all cartridges, making maintenance quick and efficient.

Features

FRP (Fiberglass Reinforced Plastic) housing
Flanged inlet/outlet connections
Lightweight, corrosion-resistant construction
All cartridges removed as a single set for easy service
Suitable for pretreatment and polishing stages

Technical Specifications

Housing Material: FRP
Working Temperature: 1–35°C

Ideal Applications

RO pretreatment
Commercial and industrial filtration
High-capacity particle or sediment reduction
Water polishing before process use

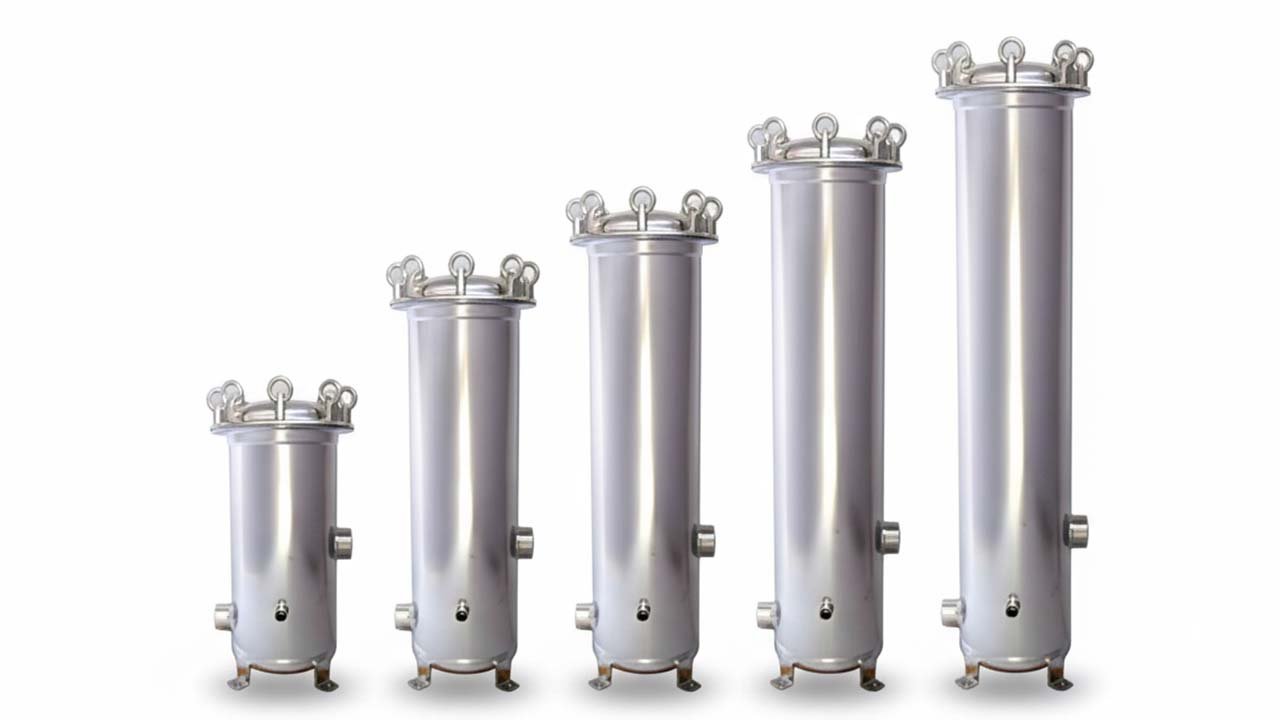

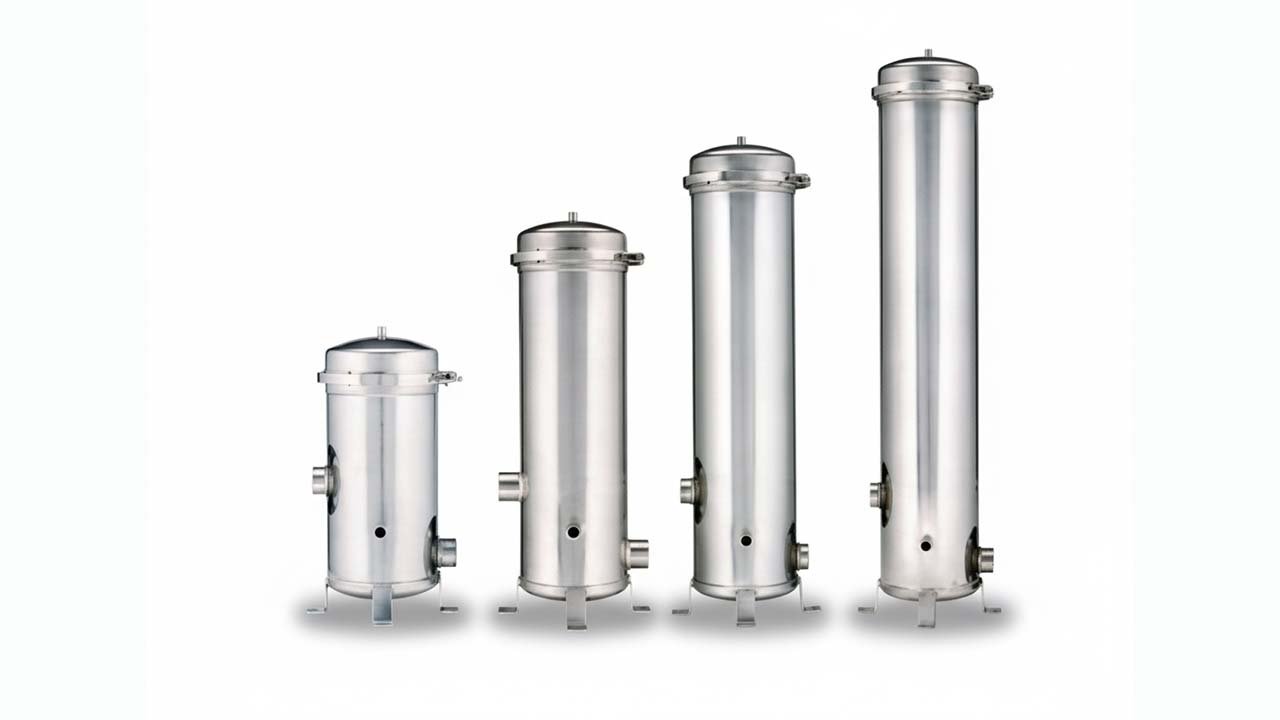

Stainless Steel Cluster Filter

The Stainless Steel Cluster Filter offers strong corrosion resistance and long service life. It is ideal for applications requiring robust construction and efficient multi-cartridge filtration.

Features

High-strength SS304 or optional SS316 housing
Flanged inlet/outlet connections
Entire cartridge set removable at once for easy maintenance
Designed for demanding commercial and industrial environments

Technical Specifications

Housing Material: SS304 (SS316 available upon request)
Working Temperature: 1–50°C

Ideal Applications

Industrial water filtration
High-pressure or high-temperature systems
RO pretreatment
Food, beverage, and pharmaceutical filtration
Chemical process water systems

System Components

Certified Parts. Proven Performance.

We use certified components sourced from trusted global manufacturers to ensure system durability, operational stability, and regulatory compliance. From membranes and pumps to control panels and filtration media, every part is selected to support long-term performance and ease of maintenance.
