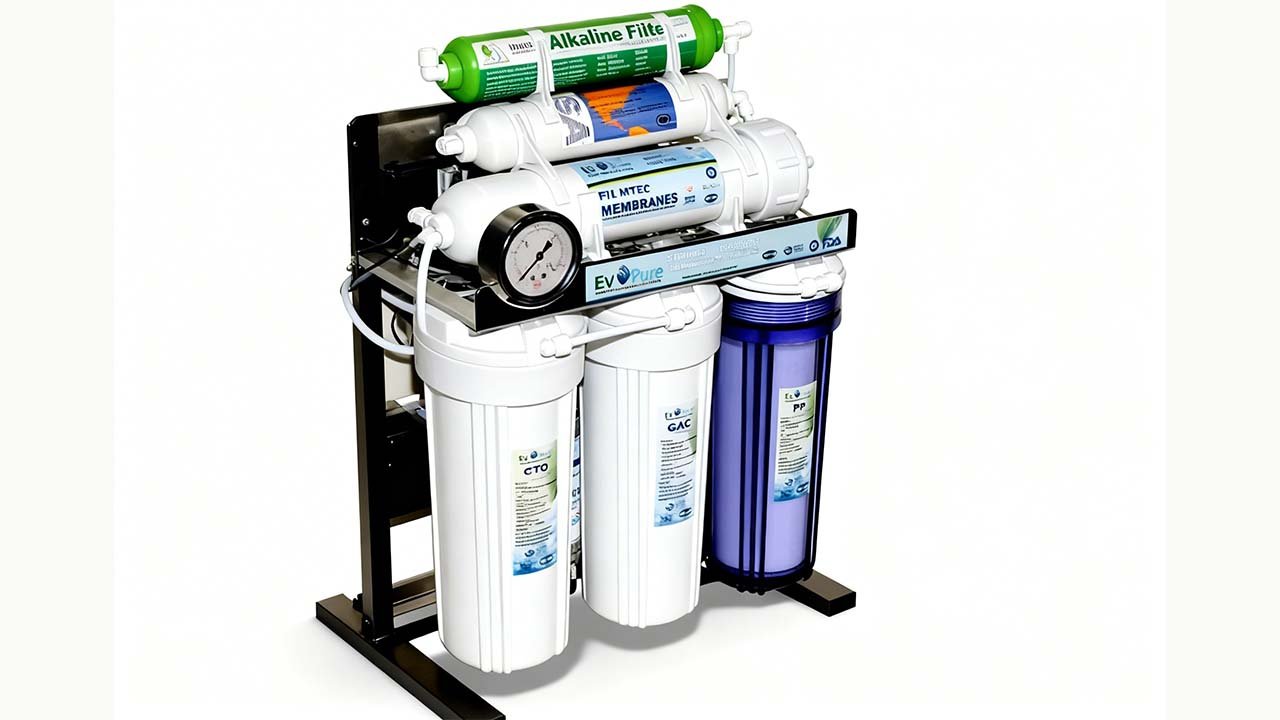

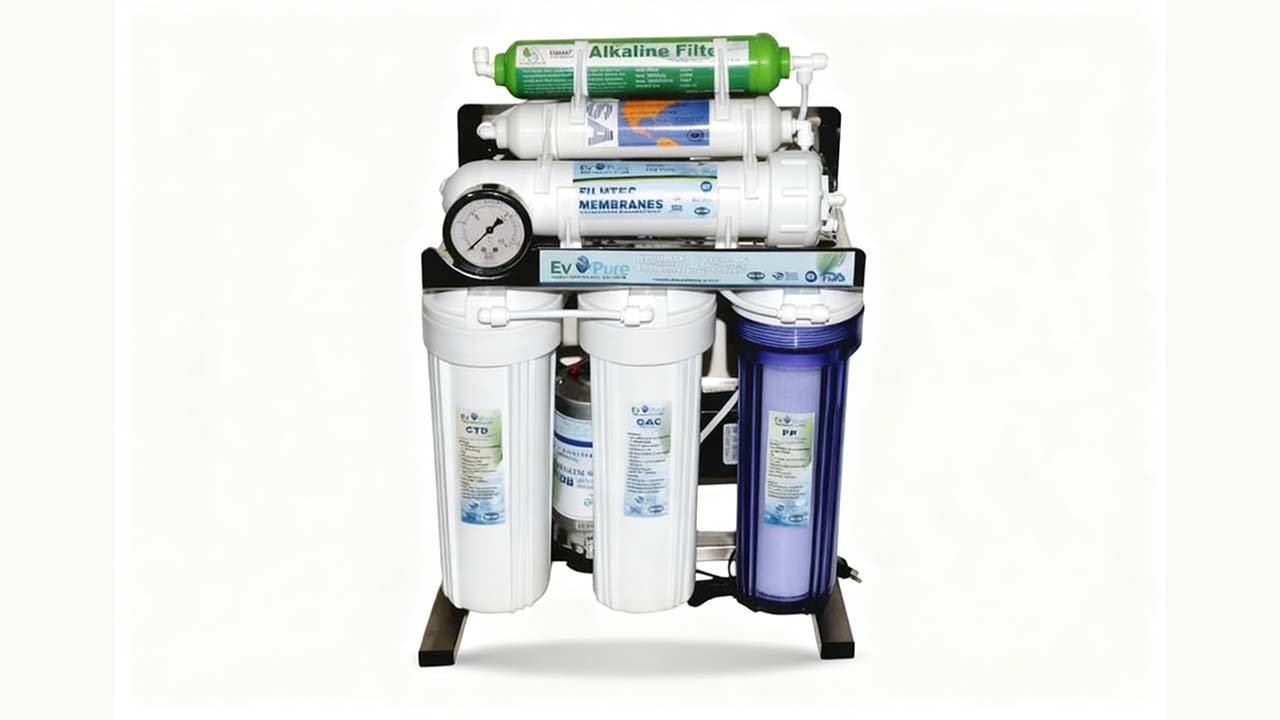

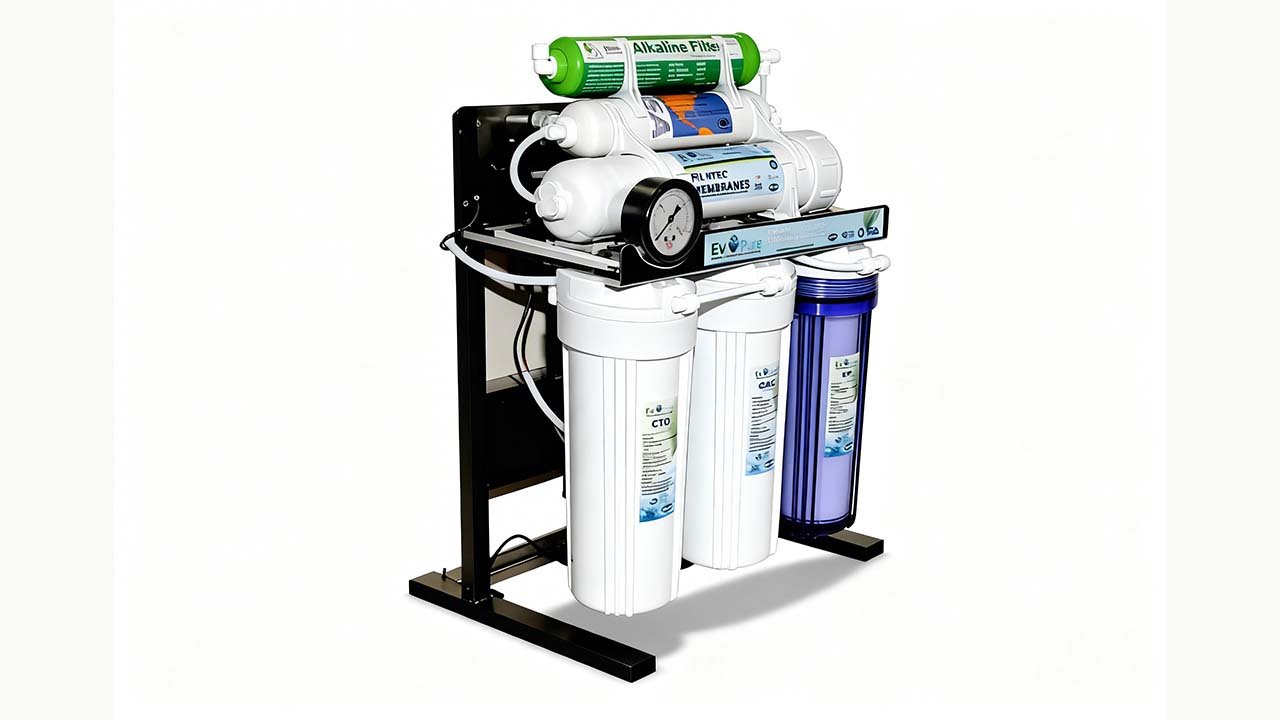

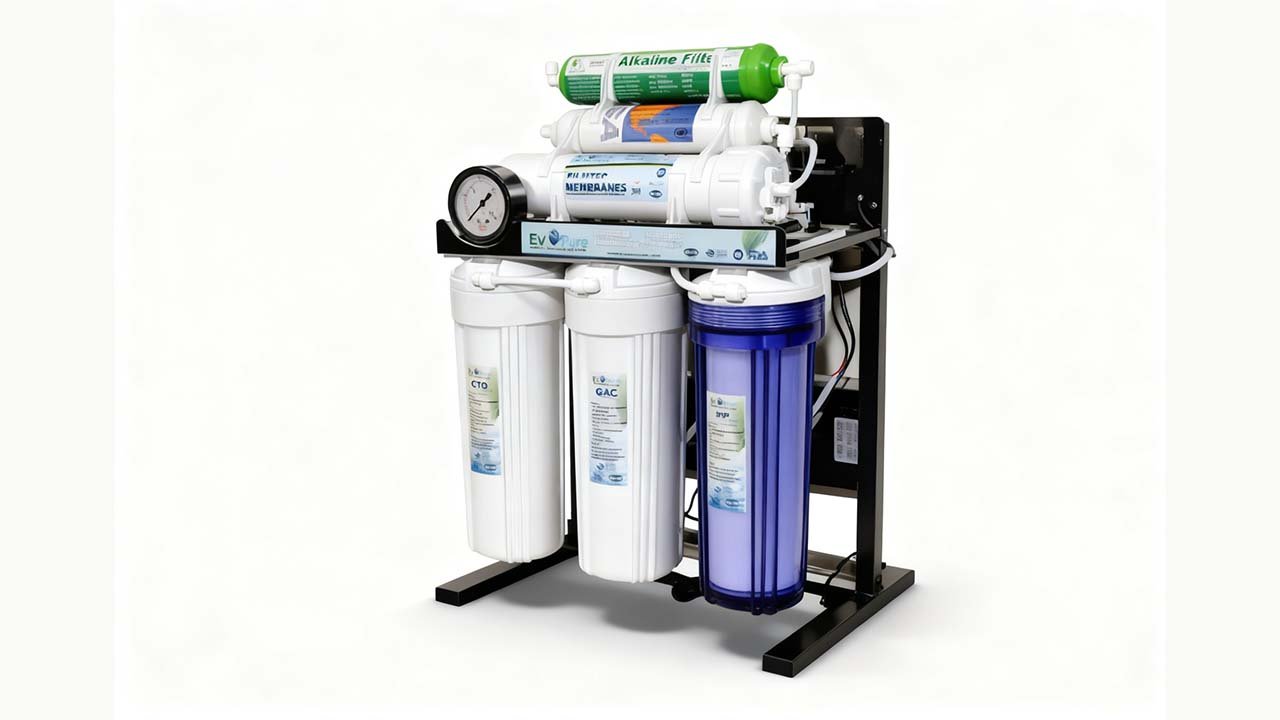

Evo pure USA Alkaline RO

The Evo Pure USA Alkaline RO System is a multi-stage reverse osmosis water purifier designed to produce clean and mineral-balanced drinking water. The system combines sediment filtration, carbon purification, reverse osmosis membrane separation, and alkaline mineral enhancement.

Its compact design makes it suitable for residential and small commercial installations where consistent purified water is required. The alkaline stage helps restore beneficial minerals while improving the taste and pH balance of purified water.

Features

7-stage alkaline reverse osmosis purification system
High-performance RO membrane filtration
Multi-stage sediment and carbon filtration
Integrated booster pump for stable filtration pressure
Mineral and alkaline filters for balanced water pH
Wall-mounted filtration system with stand support
Includes storage tank and pressure tank for filtered water

What the system is and what problem it solves?

Municipal water and groundwater often contain dissolved solids, chlorine, sediments, and other contaminants that affect water quality and taste.

The Evo Pure USA Alkaline RO System removes these impurities through multi-stage filtration while restoring beneficial minerals. This helps produce clean, better-tasting water suitable for daily drinking and household use.

Process Design & Operating Philosophy

The system uses sequential filtration stages to protect the RO membrane and improve purification performance. Initial sediment and carbon filters remove particles, chlorine, and organic contaminants before the reverse osmosis stage.

The RO membrane separates dissolved salts and impurities from water, while post-carbon filtration improves taste and odor. The alkaline stage restores selected minerals and helps balance the pH of the purified water.

Design Basis & Engineering Assumptions

Parameter	Specification
Filtration Stages	7 Stage Alkaline RO System
System Output	10” Sediment Cartridge
RO Membrane	High rejection RO membrane
Post Filtration	Inline GAC taste & odor filter
Mineral Enhancement	Mineral and alkaline filter
Pump	Booster pump for pressure support
Storage	Filtered water storage & pressure tank
Mounting	Stand mounted filtration unit

Final output varies with feed pressure, temperature, and inlet water quality.

System Configuration

The EVO Pure 50 GPD system includes:

1st Stage – Polypropylene Sediment Filter (1 micron)

Removes sand, rust, silt, and suspended particulates
Protects downstream carbon filters and membrane
Recommended replacement: 6 months

2nd Stage – GAC Activated Carbon

Adsorbs chlorine, chemical residues, pesticides, odors, and organics
Improves taste and protects RO membrane from oxidation
Recommended replacement: 6 months

3rd Stage – CTO Coconut Shell Carbon Block

Removes remaining chlorine, heavy metals, and chemical traces
Provides deeper filtration than granular carbon
Recommended replacement: 16 months

4th Stage – Reverse Osmosis Membrane (50 GPD)

Pore size: 0.001 microns
Removes dissolved solids, metals, bacteria, viruses, inorganic/organic compounds
Recommended replacement: 4 years

5th Stage – Inline T33 GAC Coconut Shell Carbon Filter

Final polishing for improved taste and odor
Recommended replacement: 2 years

Storage Tank

3.2 gallon capacity
Work pressure < 0.4 MPa
NSF-approved design

Additional components included:

USA-220 booster pump
Automatic shut-off valve
Long-reach faucet
Installation hardware kit

Performance depends on water quality and pressure conditions.

Pretreatment & Integration Requirements

Helps support natural body detoxification
May reduce symptoms of acid reflux
Supports bone health by balancing acidity
Provides antioxidant potential
Contributes to balanced hydration

Models

Features

Standard Features:

Five-stage under-sink RO system
1-micron sediment and dual-carbon pre-filtration
50 GPD RO membrane
Inline post-carbon taste-improvement filter
USA-220 booster pump
Automatic shut-off valve
3.2-gallon NSF-approved storage tank
Plastic-body housing for compact installation
Complete installation kit

Applications

Residential drinking water purification
Offices and small commercial spaces
Restaurants and cafés
Laboratories and clinics
Hotels and hospitality environments

Ideal for

Residential Drinking Water Systems

Provides purified and mineral-balanced drinking water for homes.

Office Water Purification

Reliable filtered water supply for workplaces.

Restaurants and Cafés

Improves water quality for beverages and food preparation.

Users Seeking Alkaline Water

Adds mineral balance and improved taste to purified water.

Compact Installation Areas

Wall-mounted design suitable for limited installation spaces.

Municipal Water Supply Users

Ideal for enhancing the quality of standard city water.

System Components

Certified Parts. Proven Performance.

We use certified components sourced from trusted global manufacturers to ensure system durability, operational stability, and regulatory compliance. From membranes and pumps to control panels and filtration media, every part is selected to support long-term performance and ease of maintenance.
