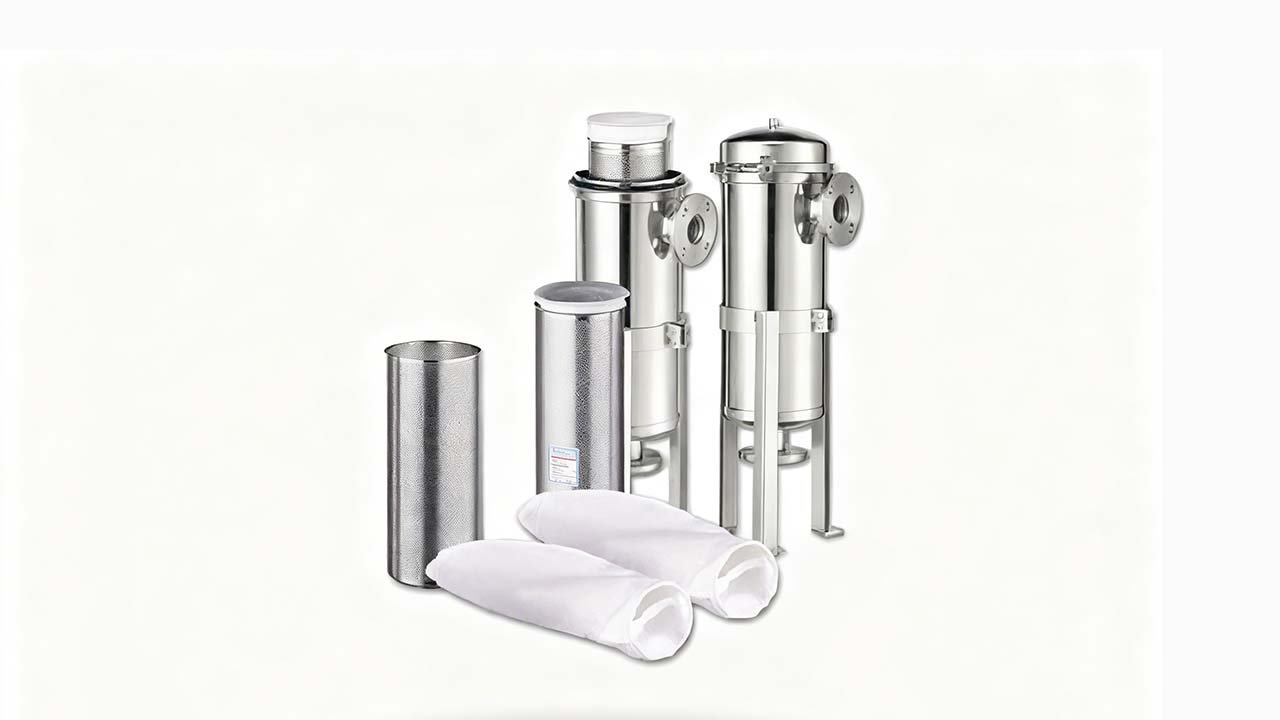

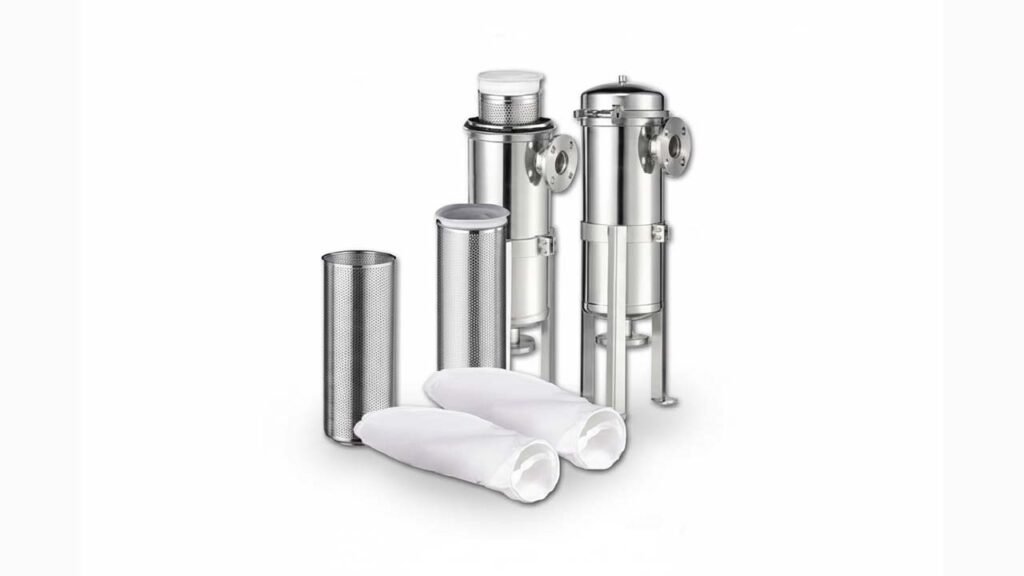

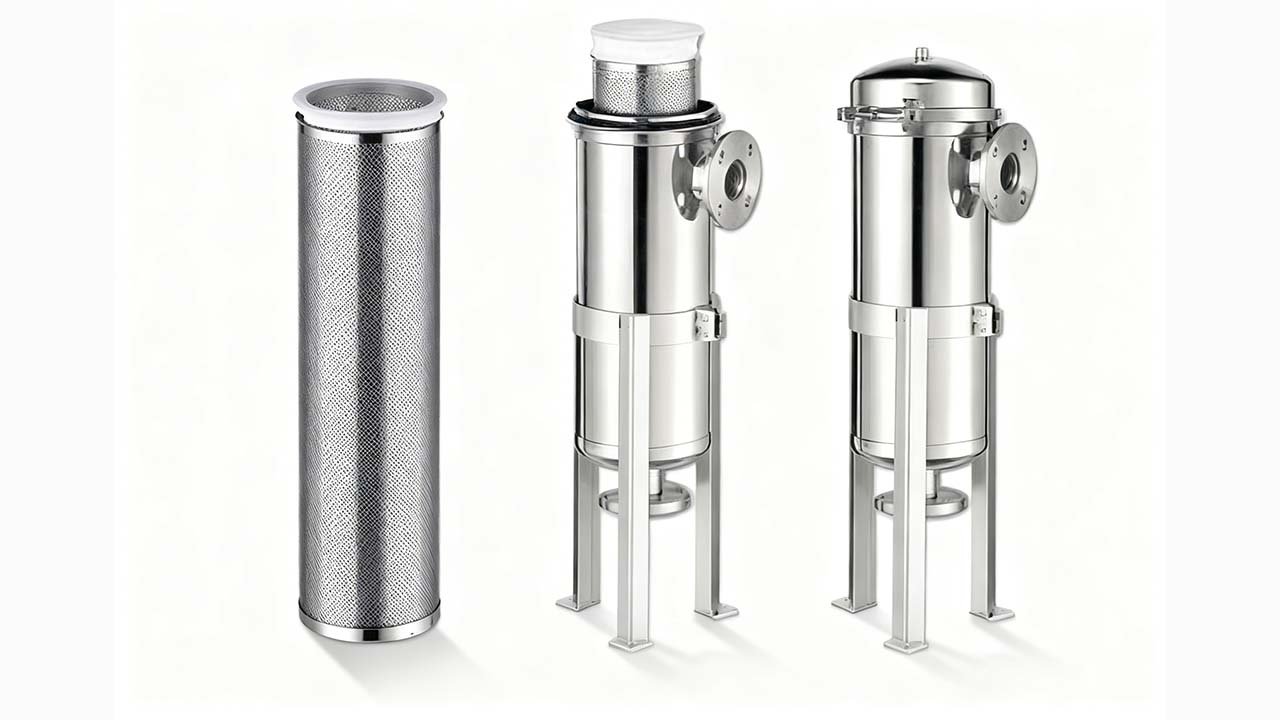

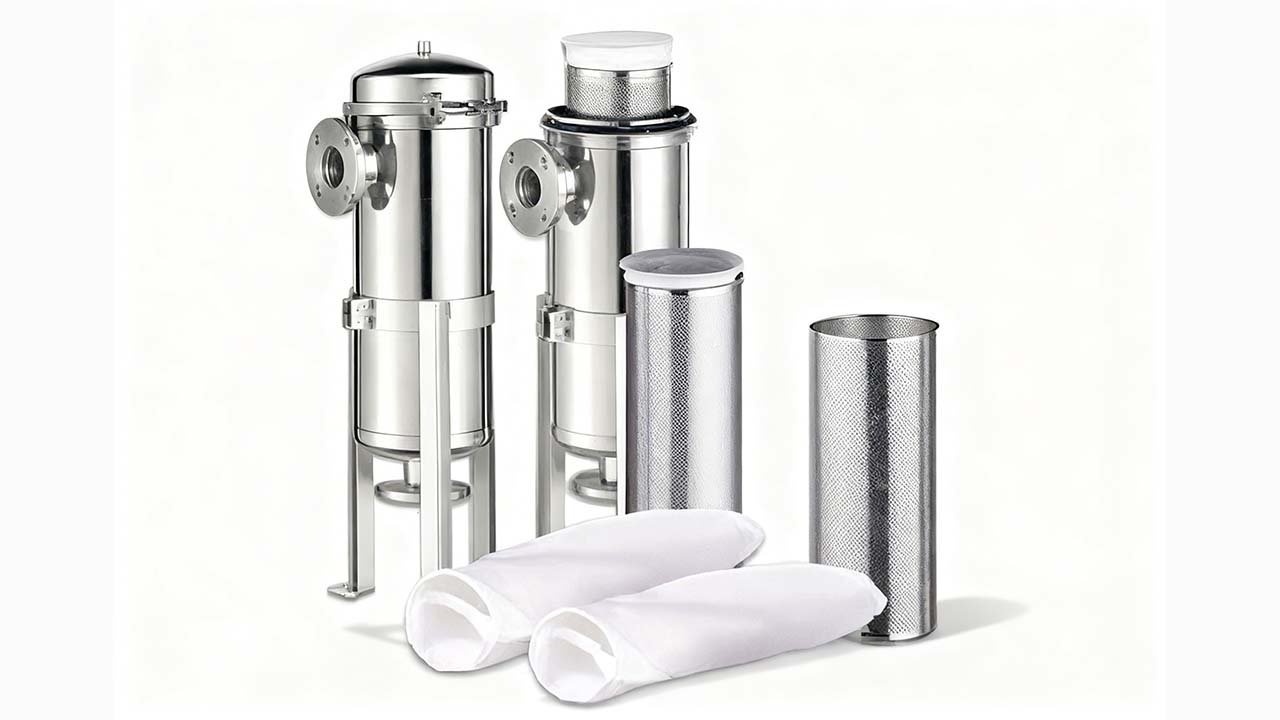

Stainless Steel Bag Filter

The Stainless Steel Bag Filter is a durable filtration housing designed for removing suspended solids, dirt, and fine particles from liquids. Built from corrosion-resistant stainless steel, it supports stable performance in demanding applications across water treatment, chemical processing, and industrial operations.

Features

High-strength stainless steel housing (SS304 or SS316)
Efficient removal of dirt, sediment, and suspended solids
Supports various micron-rated filter bags
High flow capacity with low pressure drop
Easy bag replacement and simple maintenance
Suitable for water, chemicals, oils, and industrial fluids
Available in multiple sizes and inlet/outlet configurations

What the part is and what problem it solves

Bag filters help remove solid contaminants from process liquids before they reach pumps, membranes, valves, or downstream equipment. This prevents clogging, reduces maintenance frequency, and supports consistent system performance in industrial environments.

Technical Specifications

Specification	Details
Material	Stainless Steel SS304 / SS316
Filter Type	Bag Filter Housing
Micron Rating	1 – 200 microns
Filtration Media	Bag filter (PP / Polyester / Nylon)
Max Operating Pressure	Up to 10 bar
Operating Temperature	Up to 120°C
Inlet/Outlet	Flanged or threaded
Surface Finish	Mirror or matte
Mounting Type	Vertical
Flow Capacity	Based on model and bag size

Models

Features

Applications

Water & wastewater treatment
Chemical & pharmaceutical processing
Food & beverage filtration
Oil, fuel, and lubricant filtration
Paints, inks, coatings, and resin filtration
General industrial liquid filtration

Customization Options

Single-bag or multi-bag housings
SS304 or SS316 construction
Various inlet/outlet sizes
Custom micron ratings
Pressure & temperature customization

System Components

Certified Parts. Proven Performance.

We use certified components sourced from trusted global manufacturers to ensure system durability, operational stability, and regulatory compliance. From membranes and pumps to control panels and filtration media, every part is selected to support long-term performance and ease of maintenance.
