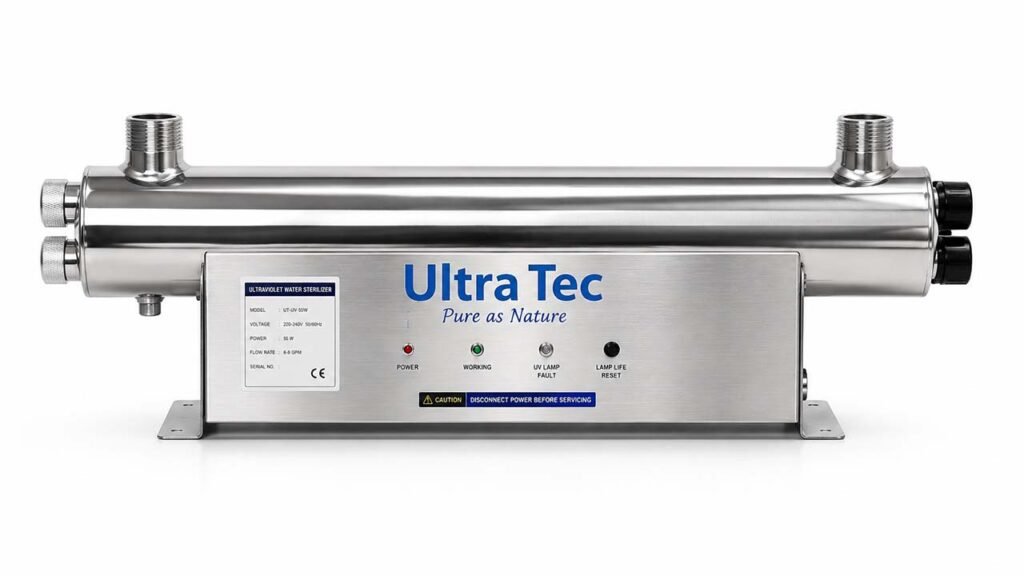

Ultraviolet water Sterilizer ( 48 GPM-HTM )

Dimension LxWxD (mm)	980X230X280
Electrical Volts	110/220V / 50/60HZ
Flow Rate	48GPM
In/out Port	1 1/2″
UV Lamp (PC)	4
Quartz Sleeve (PC)	4
Lamp Failure Device	YES
Ambient Temperature	2-40oC(36-104oF)
Lamp Watts	40Wx4
Chamber	SS304
Accumulated Timer	UV48GPM-HT, HTM
UV Light monitor	UV48GPM-HTM

What This System Does

The Ultraviolet Water Sterilizer (48 GPM-HTM) is designed to disinfect water by reducing microorganisms using ultraviolet light without the addition of chemicals. It is suitable for commercial and industrial applications where continuous water treatment is required. The system is engineered for site conditions and configured based on feedwater analysis, required flow rate, and application requirements. Pretreatment may be recommended to improve UV transmission and support consistent system operation.

How It Works

Water flows through the SS304 stainless steel chamber where it is exposed to ultraviolet light generated by four UV lamps protected by quartz sleeves. The UV energy helps inactivate microorganisms before the treated water leaves the system.

The system incorporates UV light monitoring and lamp status monitoring to assist with operational supervision. System performance and operating parameters are verified during commissioning.

Model

Features

SS304 stainless steel UV chamber
48 GPM flow capacity
Four 40W UV lamps
Four quartz sleeves
UV light monitoring system
Lamp failure monitoring device
Accumulated operating hour timer
Suitable for 110/220V, 50/60Hz power supply
1½-inch inlet and outlet connections
Designed for continuous operation
Engineered for commercial and industrial applications
Supplied with installation support

Available Options

Configuration based on feedwater analysis
Pretreatment system integration
Flow monitoring accessories
Control panel upgrades
Installation support across the UAE
Commissioning assistance
Preventive maintenance services
Replacement UV lamps and quartz sleeves
Annual maintenance agreements

Applications

The 48 GPM UV sterilizer is suitable for medium to high-flow water disinfection applications.

Hotels and resorts
Hospitals and healthcare facilities
Food and beverage processing
Manufacturing plants
Commercial buildings
Reverse osmosis post-treatment
Process water treatment
Educational institutions

Why Ultratec

Ultratec Water Treatment Equipment LLC is an ISO 9001:2015 certified company based in Dubai, UAE, supplying engineered UV water sterilization systems throughout the UAE and Gulf region. Our systems are configured based on feedwater analysis and application requirements to support reliable operation. Components are sourced from certified global manufacturers and supplied with installation support. Our UAE-based technical team provides commissioning, preventive maintenance, and ongoing technical assistance.

Frequently Asked Questions

What applications is the 48 GPM UV sterilizer suitable for?

The system is suitable for commercial and industrial water treatment where a higher flow rate is required. Typical applications include process water, potable water, and post-treatment after filtration systems.

Is pretreatment required before UV sterilization?

Pretreatment may be recommended if the feedwater contains suspended solids, turbidity, or other contaminants that can reduce UV transmission. Feedwater analysis helps determine the appropriate pretreatment arrangement.

What maintenance does the system require?

Routine maintenance includes periodic replacement of UV lamps, inspection and cleaning of quartz sleeves, and verification of operating indicators. Maintenance intervals depend on operating conditions and water quality.

Can this UV sterilizer be integrated with other treatment systems?

Yes. It can be installed with reverse osmosis systems, multimedia filters, activated carbon filters, water softeners, and other water treatment equipment depending on the application.

How is the correct UV sterilizer selected?

Selection depends on the required flow rate, feedwater quality, installation conditions, and treatment objectives. Our technical team can recommend a suitable system after reviewing your application requirements.

Order or Enquire

Contact our team in Dubai to discuss your water treatment requirement and receive a solution configured for your site.

System Components

Certified Parts. Proven Performance.

We use certified components sourced from trusted global manufacturers to ensure system durability, operational stability, and regulatory compliance. From membranes and pumps to control panels and filtration media, every part is selected to support long-term performance and ease of maintenance.
