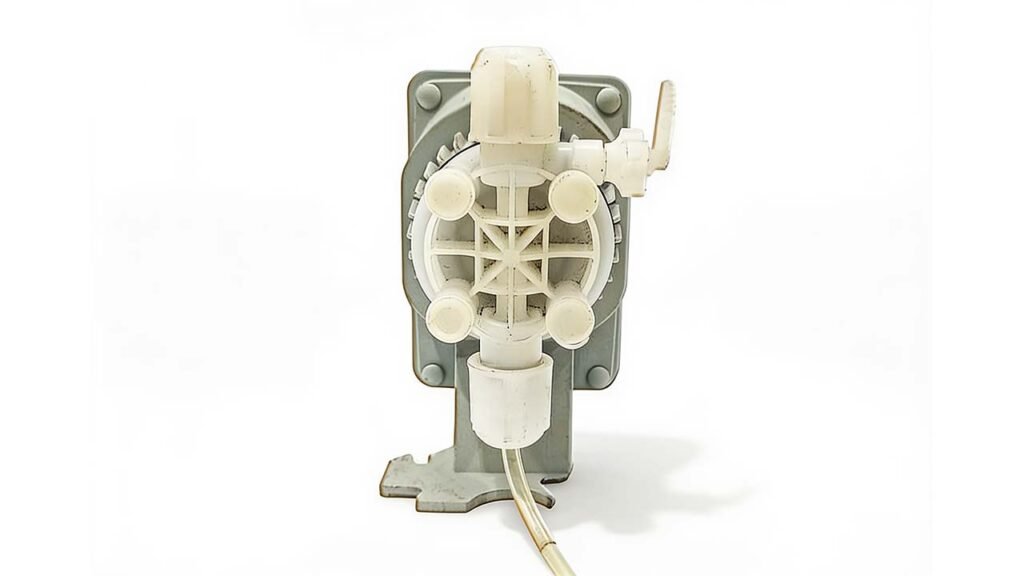

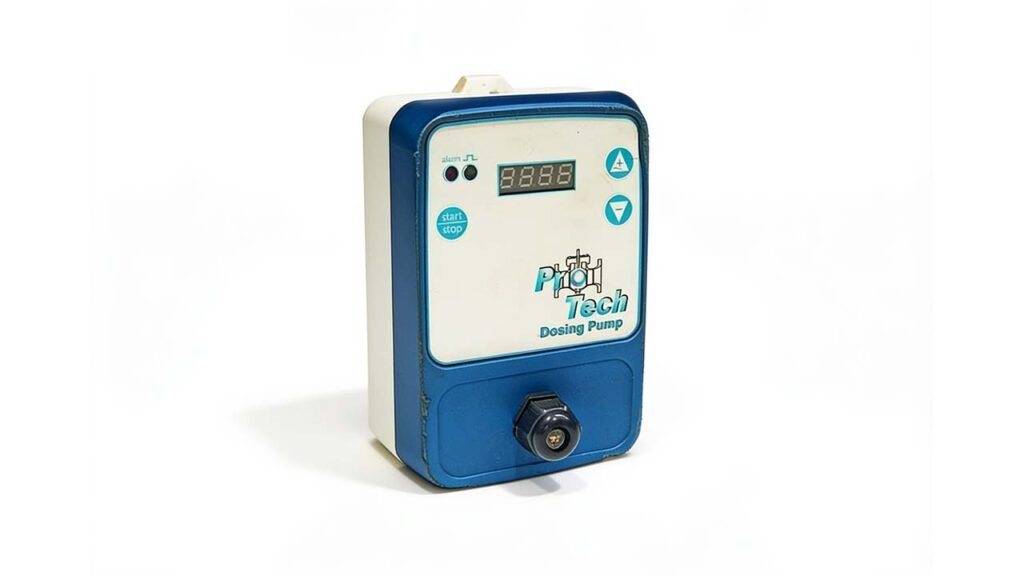

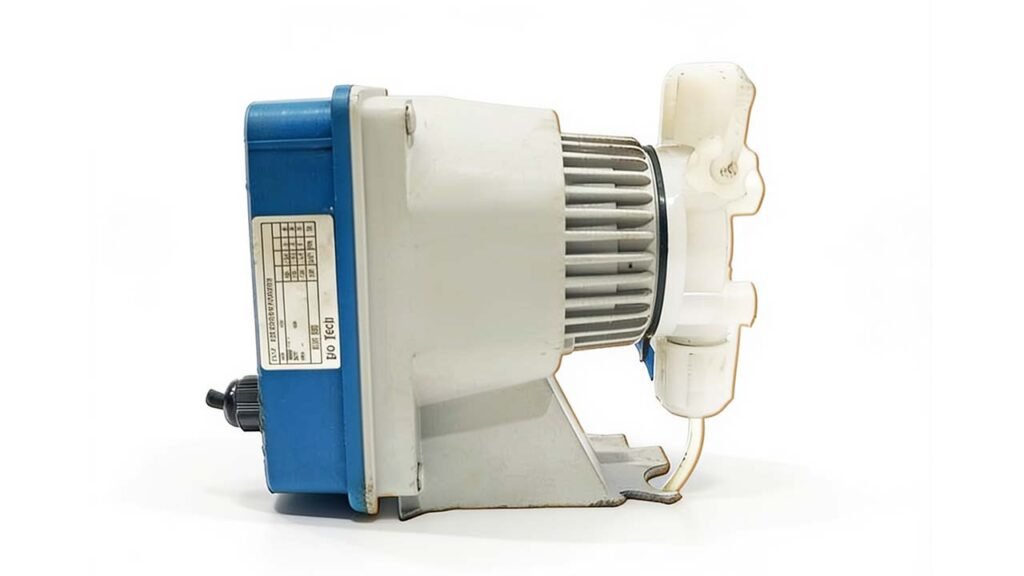

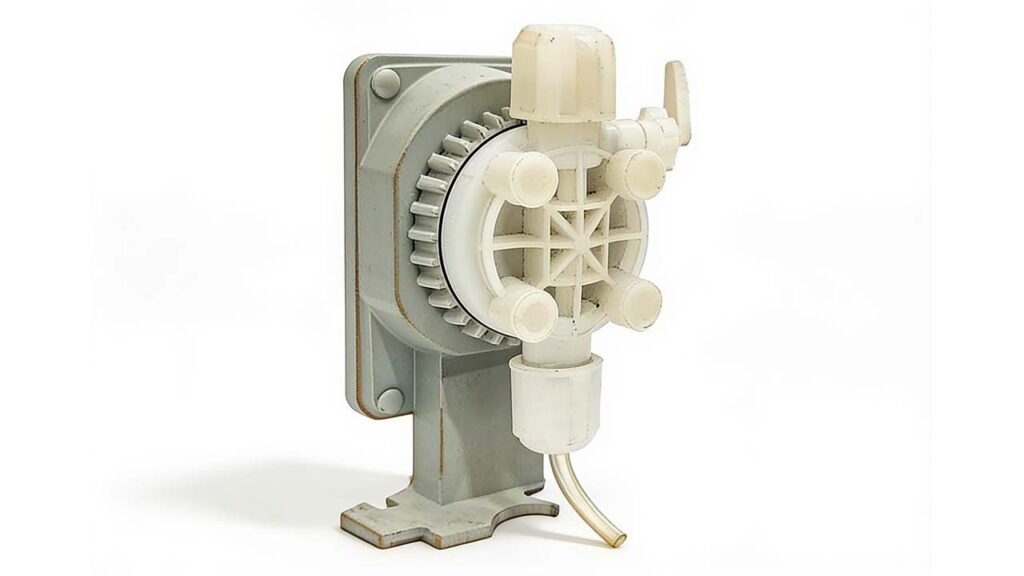

ProTech Chemical Dosing Pump

The ProTech Chemical Dosing Pump is a solenoid pump that uses a microprocessor to control dosage. its external enclosure is guaranteed to be safe against splashing water and harsh situations. In addition to having a manual priming valve and a low-level alarm to determine when to stop the pump, the pump head also comes with an installation kit. The flow rate can be adjusted manually or automatically (via signal input) and ranges from 0% (pump stop) to 100% of the maximum flow rate. ProTech Chemical Dosing Pumps can be mounted on tanks using their regular bases or by using an optional, extra-cost wall-mounting bracket.

TECHNICAL DETAILS:

Flow rates: 5 l/h at 8 bar
Power supply: 240 Vac 50 Hz (DMS)
Power Consumption : 14 Watt
Stroke rate : 160 strokes/minute
Pump head: PVDF
Diaphragm : PTFE
Injection Valve: PVDF
Ball: Ceramic
External Enclosure: PP protection degree IP65
Installation kit : Included
Packing Dimensions: 21cm x 29cm x 20cm Height
Weight: 2.5kgs

Compatible Systems

Reverse osmosis systems
Water softening systems
Multimedia filtration systems
Ultrafiltration systems
Chemical dosing skids
Wastewater treatment systems

Models

Features

Standard Features

Solenoid-driven chemical dosing pump
Microprocessor-controlled dosing operation
Manual priming function
Low-level alarm provision
Chemical-resistant pump head construction
IP-rated enclosure for industrial environments
Installation kit included

Available Options

Wall-mounting bracket
Automatic signal-based dosing control
Chemical storage tank integration
Custom dosing system configuration

Availability in UAE

This component is available from Ultratec in Dubai for supply across UAE and Gulf region. Contact our team to confirm compatible specifications, available stock, and delivery for your project.

Frequently Asked Questions

Is this chemical dosing pump compatible with different dosing applications?

Yes. The pump can be used for a variety of water treatment chemical dosing applications. Contact our team to confirm compatibility with your system requirements.

Can I order this dosing pump anywhere in UAE?

Yes. Ultratec supplies chemical dosing pumps across UAE and Gulf region. Contact our team for availability, delivery options, and project support.
